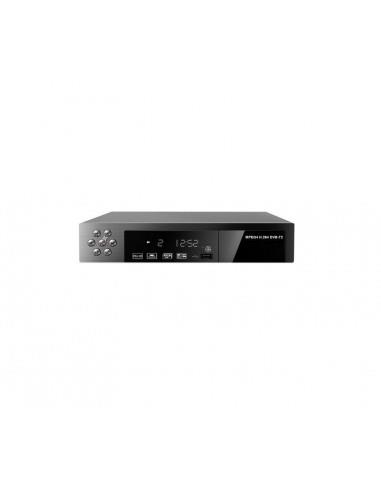

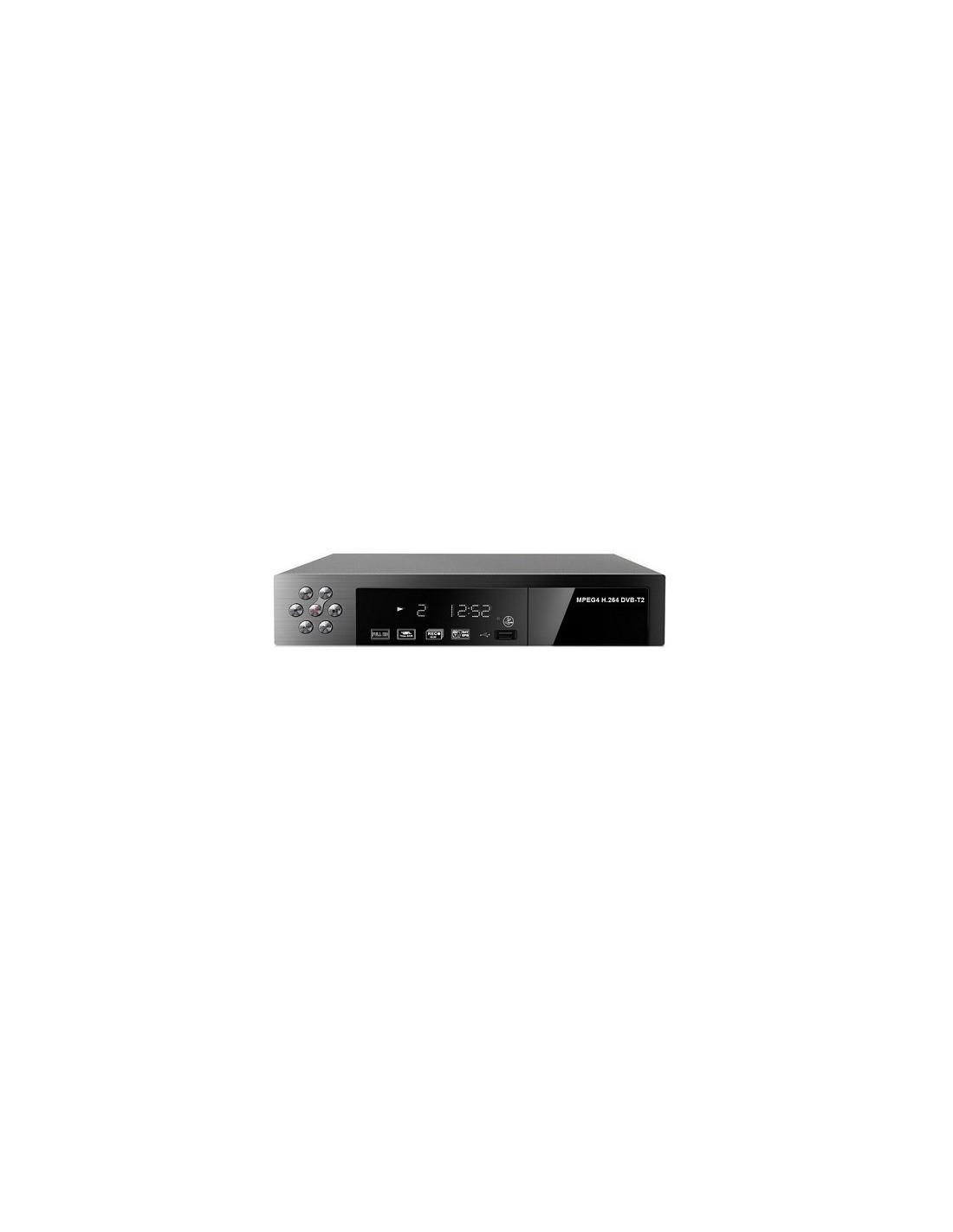

Ψηφιακός δέκτης MPEG4 – DVB-T2-A

Τύπος Ψηφιακού Δέκτη DVB-T ψηφιακός δέκτης HD.

Συνδεσιμότητα 1 USB, 1 HDMI, RCA, ANT IN, LOOP OUT, 1 SPDIF.

CPU: MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHz
Memory: 32X16Mbit DDR2 Frequency1066
Flash: 32M bytes
Demodulator Type: MSB1236C Chip Set
TUNER: Rafael R836

Front Panel

USB 2.0 Embedded One Host,
4-digit LED display on front panel
red LED Standby, green LED Lock
Panel KEY, POWER, CH+, CH-

Rear Panel

Tuner RF input connector IEC-162-2( Female)
Tuner RF Loop through connector IEC-162-2( Male)
HDMI V1.3/V1.4
RCA CVBS AL AR Connector x1
Ypbpr RCAx1
Coaxial x1
Power AC100~240V 50Hz/60Hz
